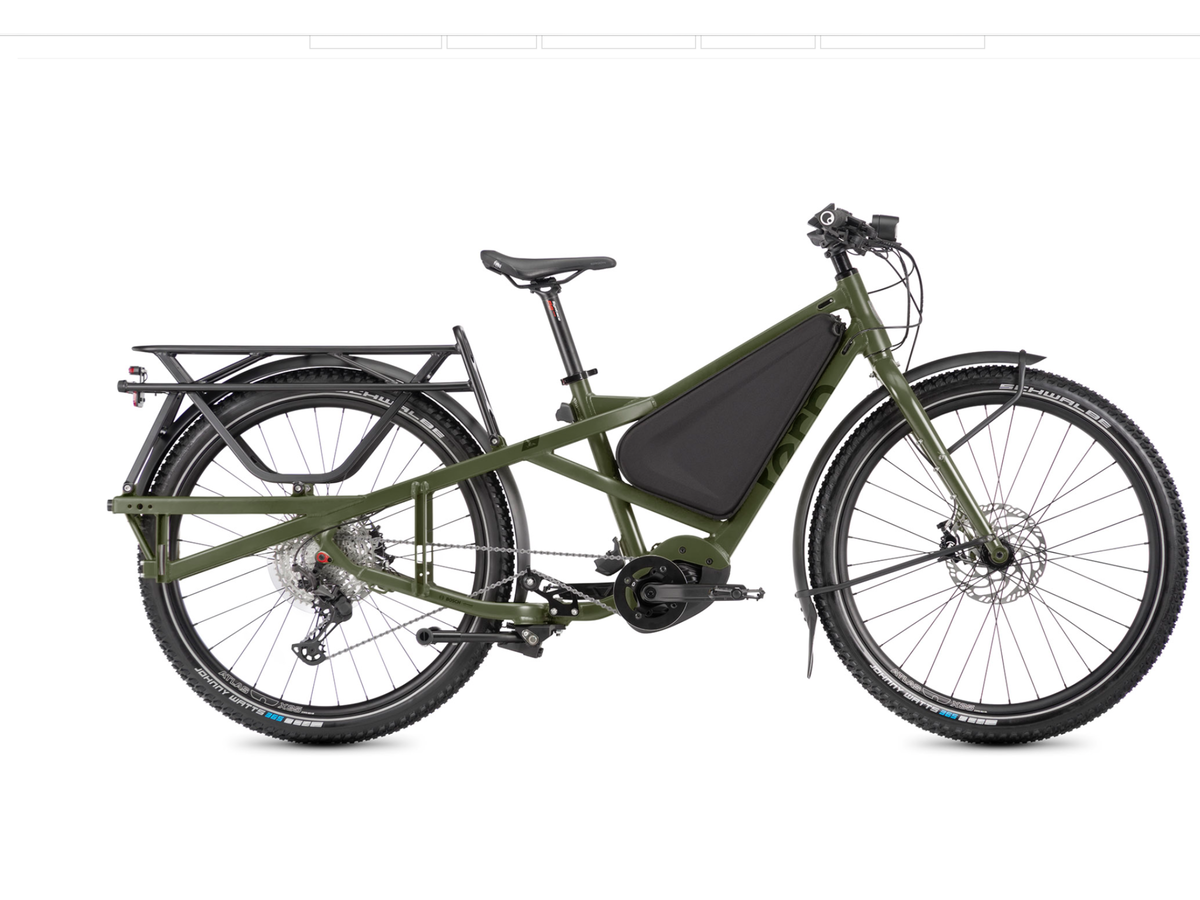

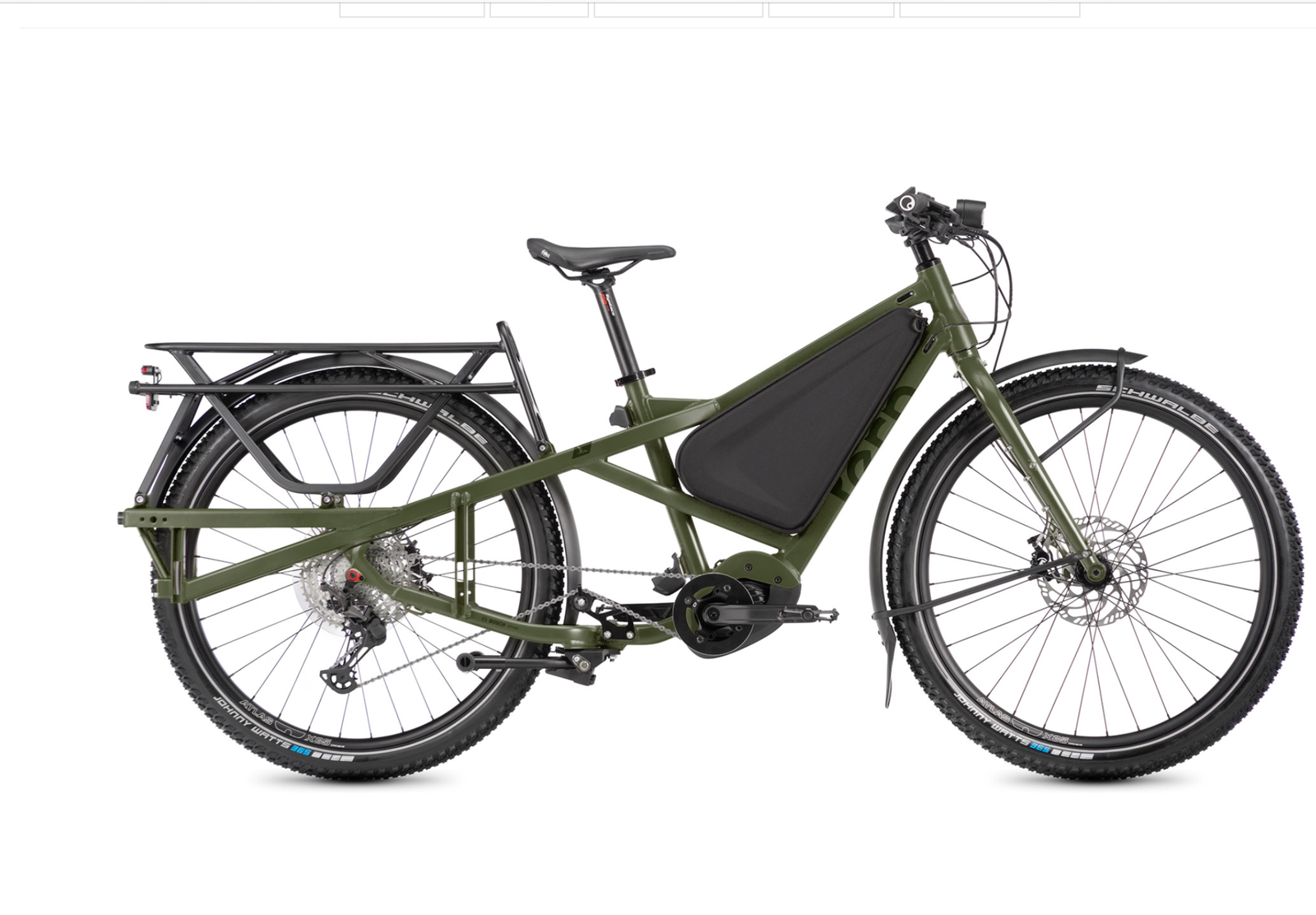

Tern Orox S12 2026
Pricing
£5.00
**Ordered Upon Request
| Model Year | 2026 |
|---|---|
| Options | 29â In Store Now 27.5â In Store Now |
| Style | What makes it an S12? Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting 29" Schwalbe Johnny Watts all-terrain tires Orox highlights Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support Dual-battery system draws from up to two batteries for ultra-long range Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking Splash and dust-proof Kiox 300 color display with LED remote for intuitive control Powerful and responsive Magura 4-piston hydraulic brakes EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road Two frame sizes to fit riders 155 - 195 cm (5- ?1- ? - 6- ?5- ?) tall, weighing up to 130 kg (286 lb) |
| Frame | Tern Orox, 6061-AL, patented design, EFBE Tested and approved |
| Forks | Atlas X, butted chromoly steel, EFBE tested and approved |
| Shifters | Shimano Deore, 1 x 12 spd |
| Chainset | Tern Orox custom |
| Bottom Bracket | Motor integrated |
| Chain | KMC 12 spd for e-bike, EPT corrosion resistant coating |
| Freewheel | Shimano 10-51T, 12 spd |
| Headset | FSA, 1.5- ?, angular contact bearings |
| Stem | Level Nine, 45mm (M), 65mm (L), Syntace VR-3 certified |
| Handlebars | Level Nine, AL-7050, 800mm, riser, eMTB approved |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 203mm rotor |
| Brake Levers | Magura MT5, hydraulic |
| Rims | Tern Atlas X, custom doublewall construction |
| Front Hub | Tern Atlas X, CNC body, disc cooling fins, 150 Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx |
| Rear Hub | Tern Atlas X, CNC body, disc cooling fins, 150 Thru-Axle, Syntace X-12 standard |
| Spokes | Stainless steel |
| Tyres | Schwalbe Johnny Watts 29 x 2.6 |
| Saddle | Ergon SM, E-Mountain Sport, CrMo Rail |
| Seatpost | Syntace P6 AL7050, 34.9mm, Syntace VR-3 SP-approved |
| Pedals | MTB non-slip |
| Grips | Ergon |
| Seat Clamp | Tern collar |
| Motor | Bosch performance CX, max speed 25 kph (EU) |
| Battery | 725 Wh or 800 Wh, Bosch dual battery pack ready |
| Display | Bosch Kiox 300 w/LED remote, electronic bike lock |
| Gearing | Shimano |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
